Calista LED Light
Features
The Callista meets the need for scenic and flexible, as well as discreet, larger scale illumination in a range of applications from public parks, urban squares, city centres and ocean fronts. The aesthetic design has the same subtle sculptural appearance, complementing both moder and classic urban spaces. Calista is high quality LED Chips. Driver with 0-10V/DALI/Programmed options, and with surge protections up to 20KV. Based on the same design language and
basic idea, one single asymmetric carving opens up for the light. The districtive carving gives the luminaire character, while also serving as a dimming reflector, softening the light and making it more pleasant in the dark of night, white also directing it precisely where needed.

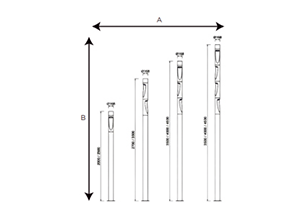

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-GDL318018-120 | 1x20W | LED | 2400lm | A68 X B2000 mm |
| LP-GDL318018-220 | 2x20W | LED | 4800lm | A68 X B2700mm |
| LP-GDL318018-320 | 3x20W | LED | 7200lm | A68 X B3500mm |
| LP-GDL318018-420 | 4x20W | LED | 9600lm | A68 X B4500mm |
| Housing | Die Cast Cover and Extruded Aluminum. |
| Diffuser | Tempered Glass |
| Color Available | Black, Gray, Any RAL Color |
| Lifespan | >100,000 Hours (L90 B10) |
| Voltage | AC100~240V |
| LED Driver | Light Plus, TriDonic, PHILIPS, OSRAM, MW |
| IP Rating | 66 |
| IK | 08 |
