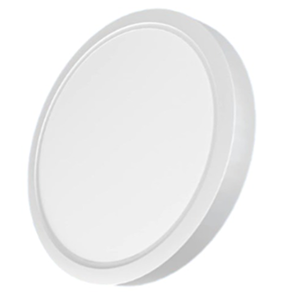

EDA LED Light
Features
EDA LED with easy installation and best features. This bulkhead light adopts Die-casting aluminum body and 94-V0 fire-rated PC cover. It is also available as led emergency bulkhead are ideal for applications that require continuous light even after a power outage. Modern IP65 rated led bulkhead also provide high bright lighting to stairway, lobby, reception, corridors and building entrances.
| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-ODL341012 | 12W | LED | 1440lm | A250 X B40 mm |
| LP-ODL341020 | 20W | LED | 2400lm | A250 X B40 mm |
| LP-ODL341024 | 24W | LED | 2800lm | A250 X B40 mm |
| LP-ODL341036 | 36W | LED | 4320lm | A300 X B40 mm |
| Housing | Die-casting Aluminum |
| Diffuser | 94-v0 Fire-rated PC diffuser |
| Color Available | White, Black & Dark-Gray |
| Lifespan | >50,000 Hours (L90 B10) |
| Reflector | Aluminium Reflector |
| Voltage | AC220~240V |
| Working Temperature | -10C° ~ 60C° |
| LED Driver | Light Plus, TriDonic, PHILIPS, OSRAM, MW |
| IP Rating | 65 |
| IK | 10 |
