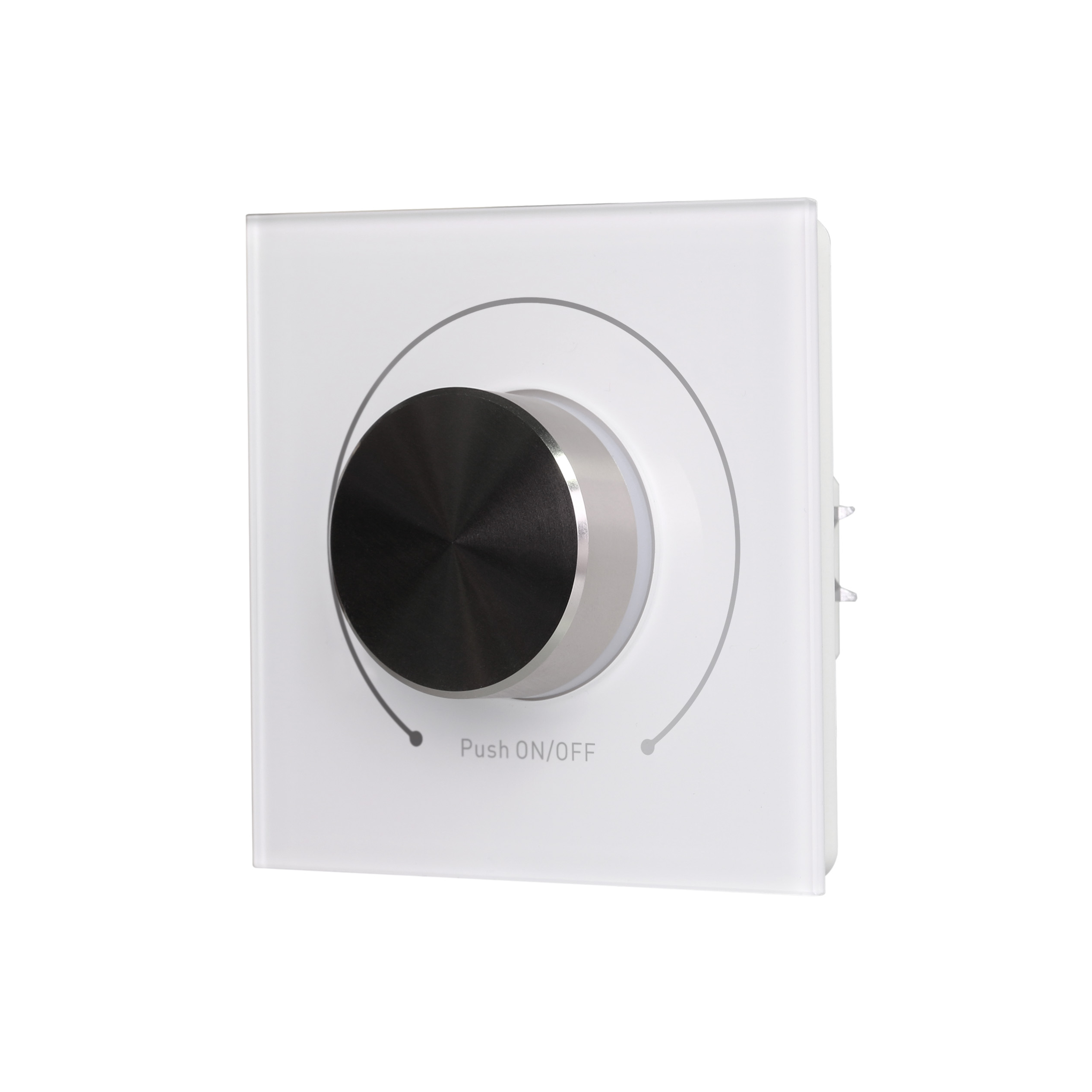

SR-2202N-1-10V-B
Product Data
- Rotation sensitive
- Standard design, The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in numerous frames by different manufactures
- 1 channel 0-10V Signal output
- Control single color
- Waterproof grade: IP20
| Power Supply | 100-240V AC |
| Power consumption | < 15 mA |
| Output Signal | 1x(0-10V) |
| Output Current | 20mA |
| Operating Temperature | 0-40°C |
| Relative humidity | 8% to 80% |
| Dimensions | 80x80x52.3mm |
- Rotate the knob counterclockwise to decrease light intensity from 100% to 1%.
- Rotate the knob clockwise to increase light intensity from 1% to 100%
- Click the rotary knob to switch ON/OFF light
