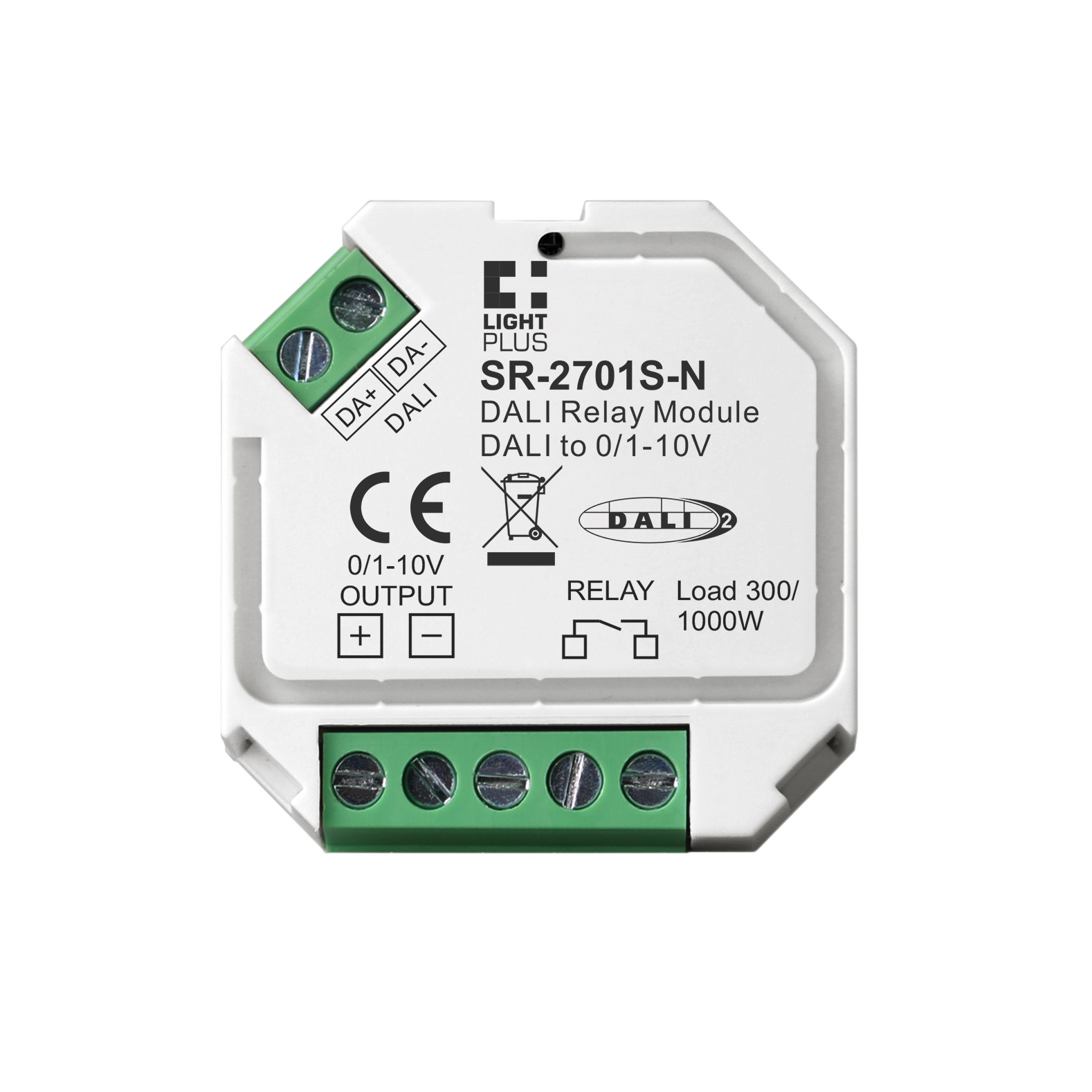

SR-2701S-N
Product Data
- DALI relay module + DALI to 0/1-10V converter 2 in 1, enable to switch power of the 0/1-10V load through the relay
- DALI bus powered, no extra power supply required
- 1 DALI address can be assigned by DALI master controller
- Control of one standard contactor
- Compact relay module for controlling a standard contactor via DALI
- Loads that do not have a DALI input can therefore be integrated in the DALI circuit
- The loads can be switched on and off via DALI
- Compatible with universal DALI systems and master controllers in the market
- Mini Size, easy to be Installed into a standard wall box
- 5 years warranty
- Waterproof grade: IP20
| DALI control input | 1 |
| DALI consumption | 3mA |
| Number of DALI addresses | 1 |
| Switching voltage AC | 100-240V |
| Switching voltage DC | Max. 30V |
| Current | Resistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A |
| Type of contact | 1 normally closed |
| Output 0/1-10V Current | <10mA |
| Protection class | II |
| Dimensions | 80x80x53mm |
1- Connecting both Relay & 0/1-10V outputs, switching of 100-240VAC powered 0/1-10V load
2- Connecting both Relay & 0/1-10V outputs, switching of 12/24VDC powered 0/1-10V load
3- Connecting only Relay output, switching of 100-240VAC load
4- Connecting only Relay output, switching of 12/24VDC load
5- Connecting only 0/1-10V signal output
Setting DALI Address:
1 DALI address can be assigned by DALI Master controller automatically, please refer to user manuals of compatible
DALI Masters for specific operations.
