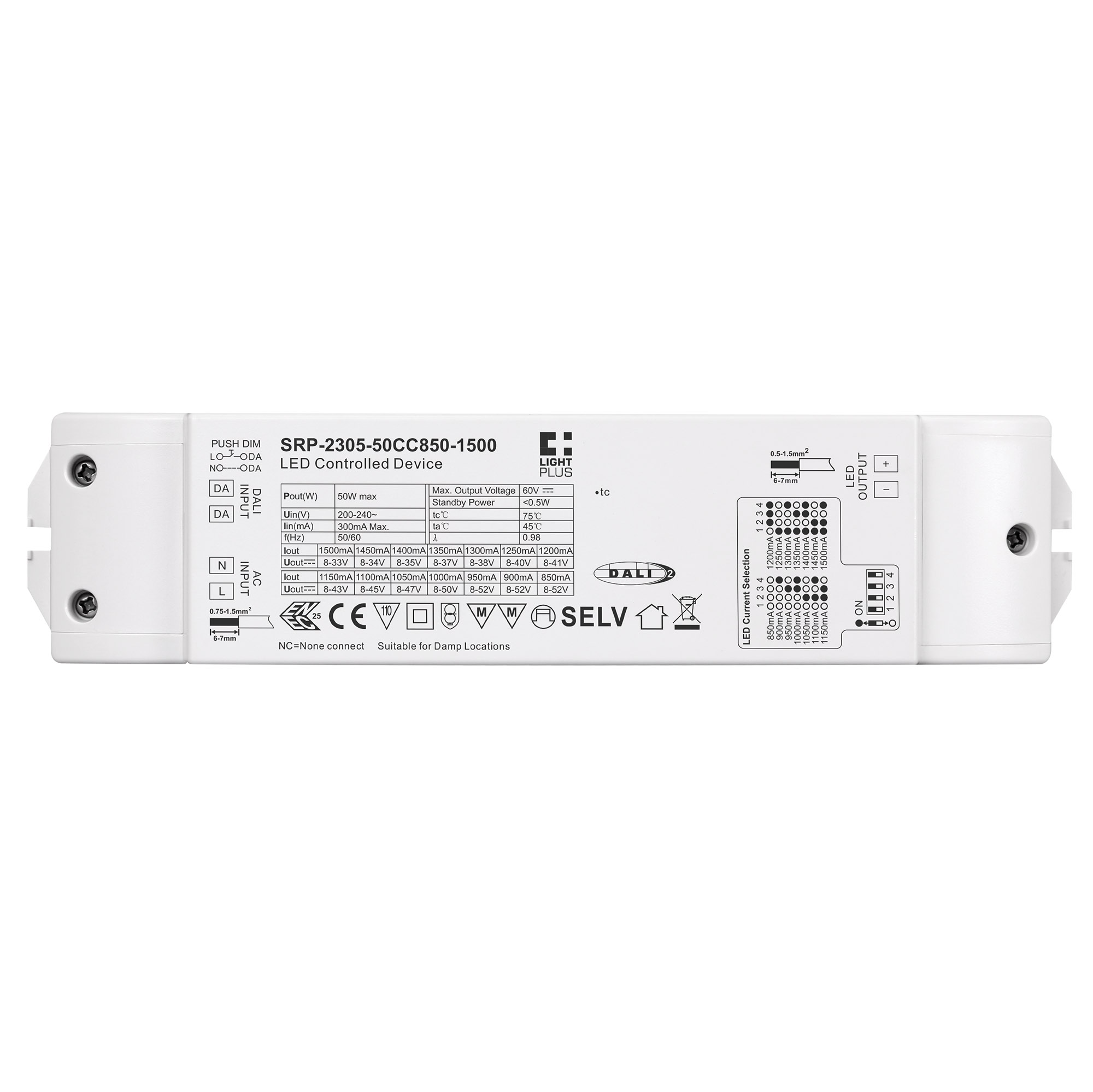

SRP-2305-50CC850-1500
Product Data
- Dimmable DALI LED driver
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
- Built-in DALI-2 interface, DALI DT6 device
- Amplitude dimming (PWM dimming under 1%), flicker free
- Smooth and deep dimming to 0.1%
- 1 channel constant current output , max. output power 50W
- Dip switches to select operation current from 850mA-1500mA
- Class 2 power supply, full isolated plastic case
- High power factor and efficiency
- Stand-by power consumption less than 0.5W
- Compatible with universal DALI masters that support DT6 commands
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
1. DALI Address Assigned by DALI Masters
DALI address can be assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
2. Power On Level
Power on level is a DALI parameter that defines the level of a control gear after power is restored. The factory default power on level for this driver is 100, which means the driver will be at 100% intensity when power is restored.
3. Push Dimmer Mode
While connected with a AC PUSH, it means Push Dimmer Mode, and operations under Push Dimmer Mode are as follows:
1.1. Click the button to switch ON/OFF
1.2. Press and hold down the button to increase or decrease light intensity to desired level and release it, then repeat the operation to adjust light intensity to opposite direction. The dimming range is from 0.1% to 100%.
1.3. Memory function after power off or power failure enables the device to memorize the status before power off while power on again.
