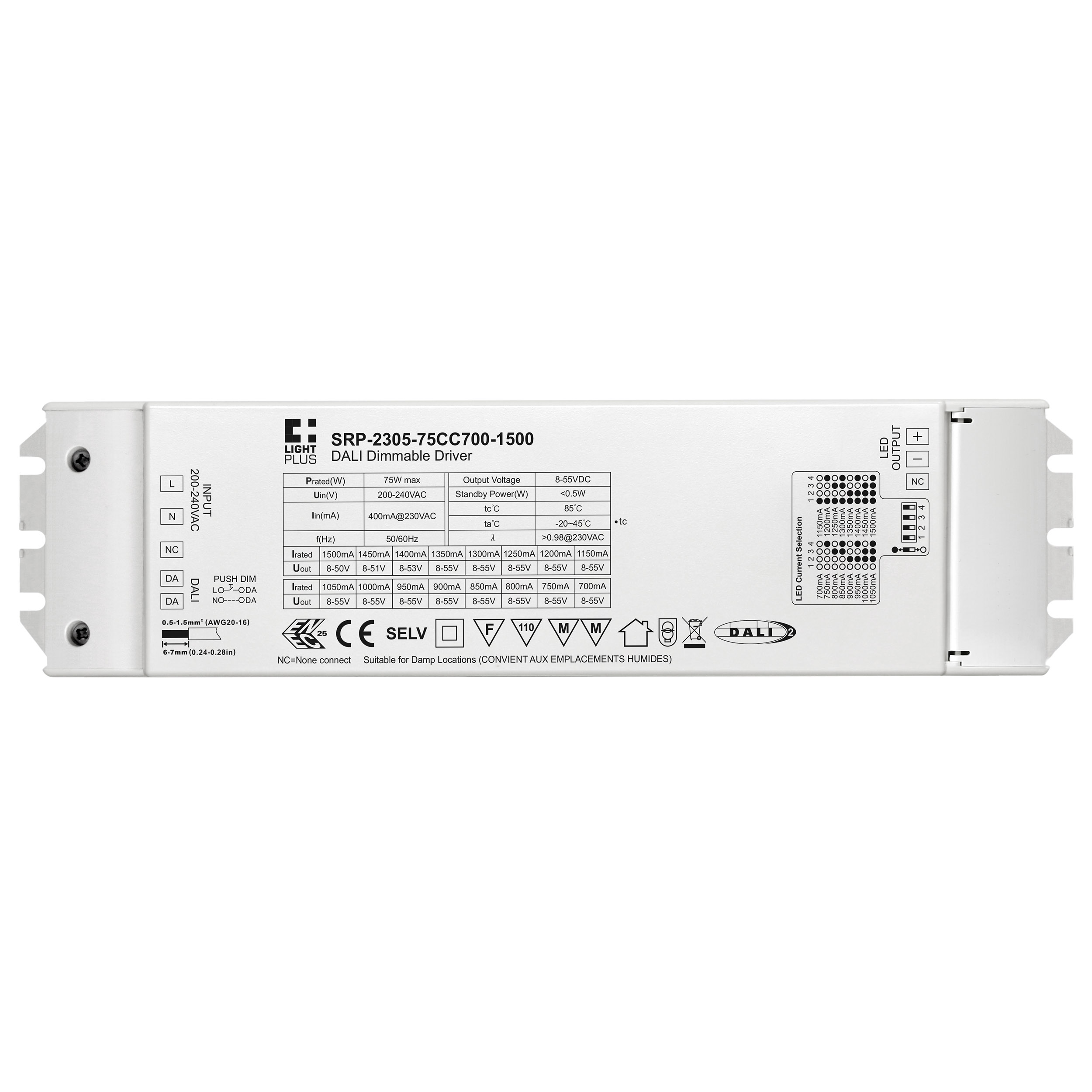

SRP-2305-75CC700-1500
Product Data
- DALI DT6 Dimmable LED driver
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
- Built-in DALI-2 interface, DALI DT6 device
- 1 channel constant current output, total output power up to 75W
- Output current level selectable from 700mA to 1500mA by DIP switches
1. DALI Address Assigned by DALI Masters
1.1 DALI address can also be assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
2.Push Dimmer Mode
While connected with a AC PUSH, it means Push Dimmer Mode, and operations under Push Dimmer Mode are as follows:
1.1. Click the button to switch ON/OFF
1.2. Press and hold down the button to increase or decrease light intensity to desired level and release it, then repeat the operation to adjust light intensity to opposite direction. The dimming range is from 0.1% to 100%.
1.3. Memory function after power off or power failure enables the device to memorize the status before power off while power on again.
