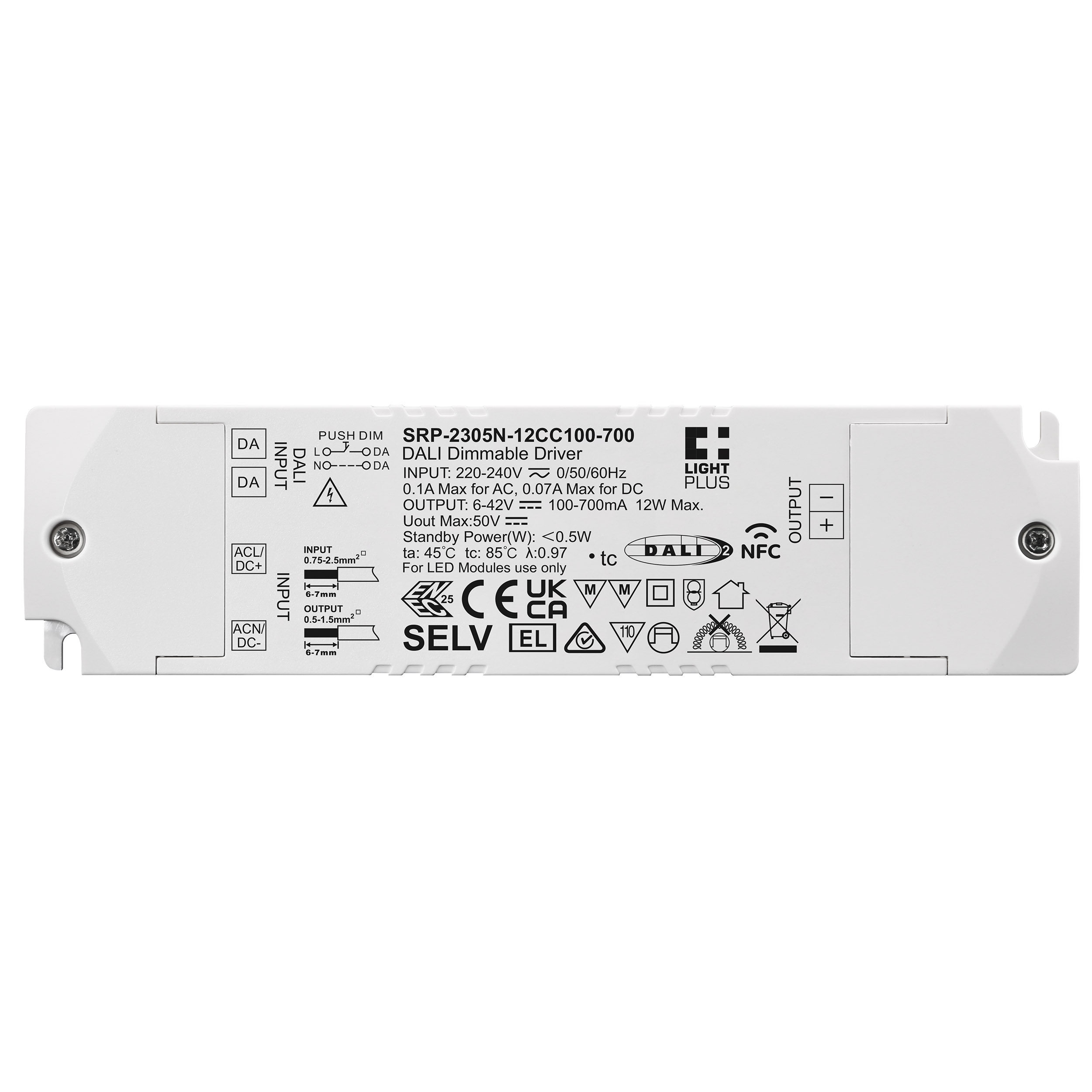

SRP-2305N-12CC100-700
Product Data
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- Dimmable LED driver. Max. output power 12W100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
- DALI Address/Group/Scene setting via NFC program tool.
- Class Ⅱ power supply, full isolated plastic case
- High power factor and efficiency
- To switch and dim Tunable White LED lighting fixtures
- Amplitude/CCR dimming, smooth and deep dimming
- Compatible with universal DALI masters that support DT8 commands
- DALI-251/252/253 Enabled, DALI data inside
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
- 5 years warranty
1. DALI Address
1 DALI address for 2 channels output are assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
Step 2: Add device, and name it as you wish.
Step 3: Unlock device, enter parameters configuring page.
Step 4: Few parameter interface, you can choose the setting based on your requirements.
Step 5: After setting, please save the selected configuration via NFC and power on the device.
1 DALI address for 2 channels output are assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
Step 2: Add device, and name it as you wish.
Step 3: Unlock device, enter parameters configuring page.
Step 4: Few parameter interface, you can choose the setting based on your requirements.
Step 5: After setting, please save the selected configuration via NFC and power on the device.
