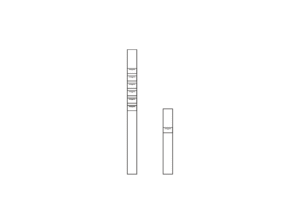

Vertical 50 LED Light
Features
Transforming the aesthetics of modern street lighting, this innovative system merges functionality with minimalist design to bring a fresh sense of order to urban spaces. The streamlined structure integrates vertical optical modules into a sleek, cohesive form, delivering exceptional performance across a range of public environments. Specifically designed for versatility, the bollard and pole mounted luminaires offer ideal solutions for illuminating pathways, building perimeters, parks, and urban squares. Equipped with advanced micro-faceted reflector technology, they ensure superior visual comfort while meeting stringent glare control standards—setting a new benchmark in architectural outdoor lighting.

| Item Code | Power | Lamp | Lumen | Dimensions |
|---|---|---|---|---|
| LP-STR32701X5 | 1 X 5W | LED | 375lm | Ø168 X 0.8m/1m |
| LP-STR32702X5 | 2 x 5W | LED | 750lm | Ø168 X 0.8m/1m/1.5m |
| LP-STR32703X5 | 3 x 5W | LED | 1125lm | Ø168 X 1.5m/3m |
| LP-STR32706X5 | 6 x 5W | LED | 2250lm | Ø168 X 3m/4m/6m |
| LP-STR32708X5 | 8 x 5W | LED | 3000lm | Ø168 X 3m/4m/6m |
| LP-STR327012X5 | 12 x 5W | LED | 4500lm | Ø168 X 3m/4m/6m |
| Housing | Steel |
| Color Available | Black, Copper, Gray |
| Voltage | AC220~240V |
| Working Temperature | -25C° ~ +65C° |
| Operating Gear | Electronic Converter |
| Surge Protection | 10 kV |
| Mounting / Base | Buried Base 0.8m |
| Class | I |
| LED Driver | Light Plus, TriDonic, PHILIPS, OSRAM, MW |
| IP Rating | 66 |
| IK | 09 |
